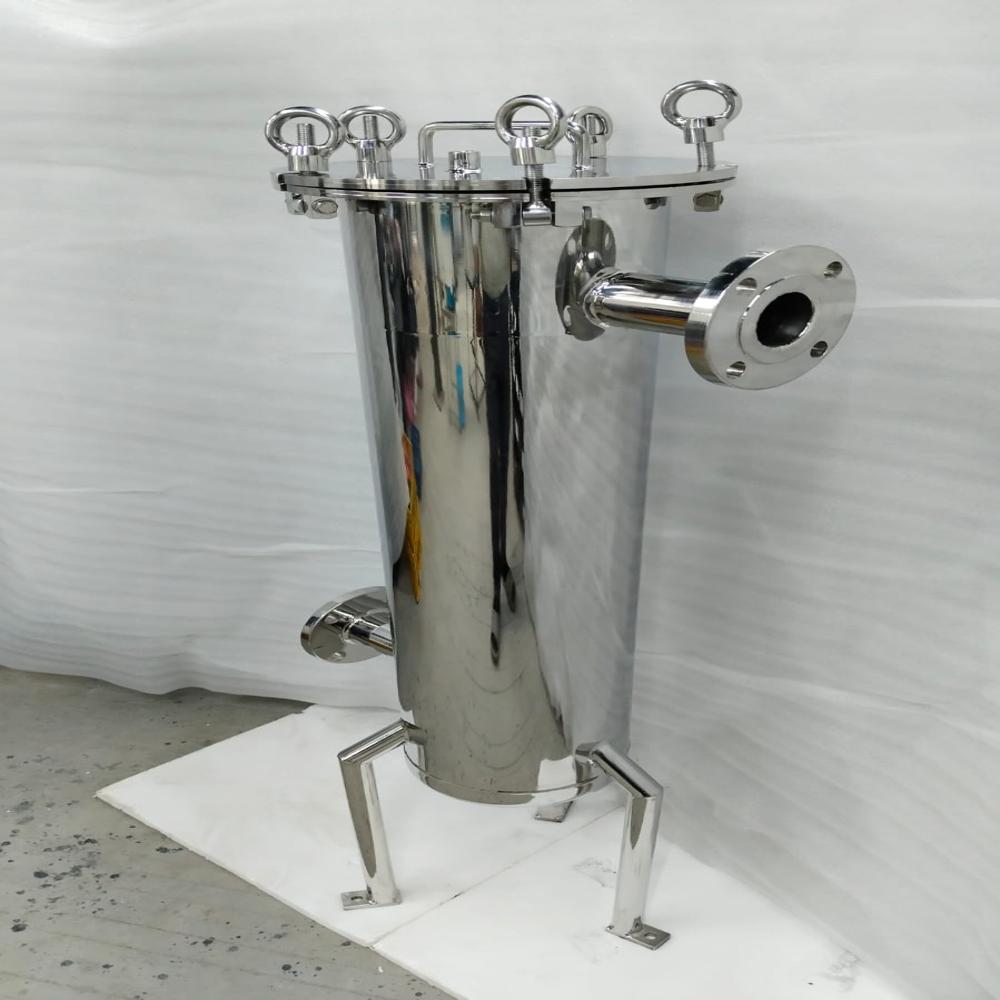

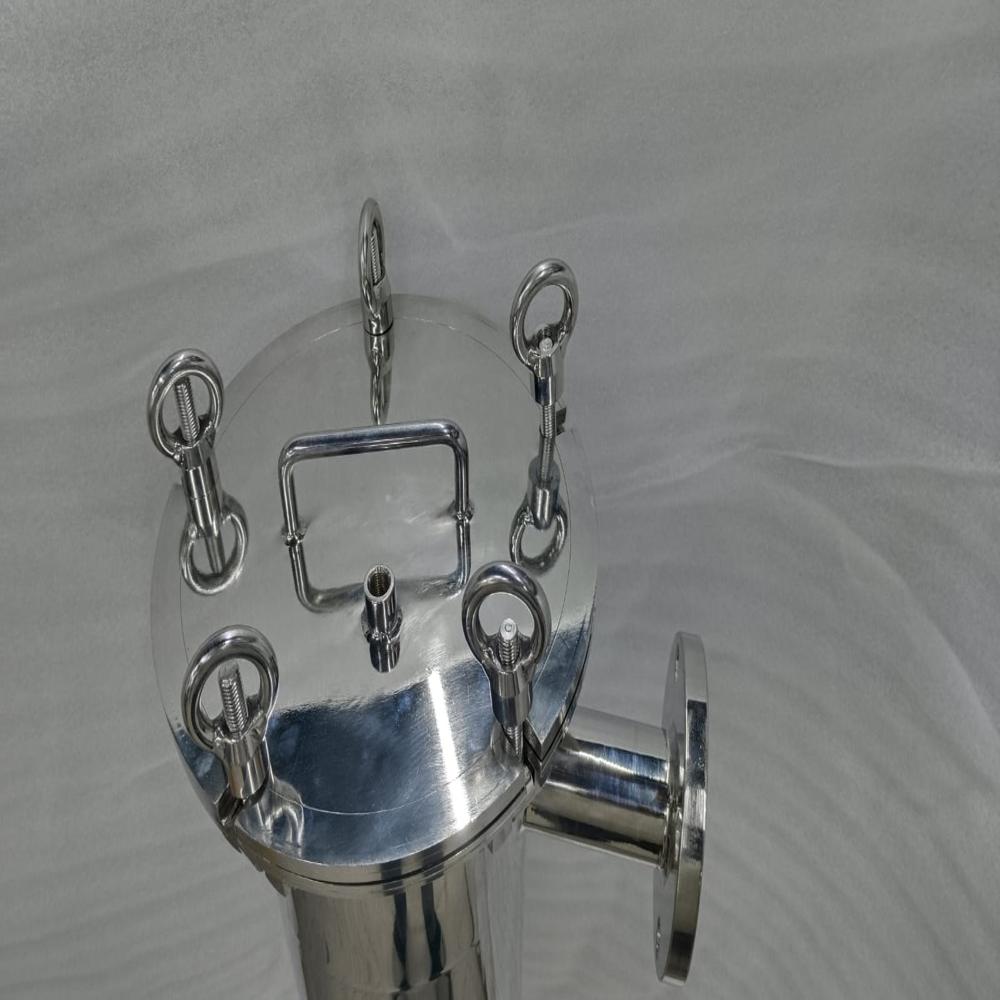

Bag Filter

About Bag Filter

A bag filter housing is an industrial filtration device used to remove solid particles from liquids or gases using filter bags. These are commonly used in industries like water treatment, chemicals, food & beverage, pharmaceuticals, oil & gas, and paints.What is a Bag Filter Housing?It is a pressure vessel designed to hold a filter bag, where the unfiltered fluid enters, flows through the bag, and exits filtered. Solids are trapped inside the bag, making the process efficient, clean, and easy to maintain.Key Components Component Description Housing body Usually made of SS304, SS316, or MS (mild steel), cylindrical in shape Top lid/cover Clamped or bolted for secure sealing Filter bag Made of felt or mesh, with micron ratings from 1m to 200m Inlet & outlet ports For fluid entry and exit Support basket Holds the filter bag in place and prevents collapse Pressure gauge (optional) Monitors internal pressure Working Principle Unfiltered fluid enters the housing under pressure. The filter bag traps solids while allowing clean fluid to pass through. Filtered fluid exits through the outlet. Once the bag is full, its removed and replaced. Types of Bag Filter Housings Type Description Single Bag Housing For small to medium flow rates Multi-Bag Housing For high-flow systems, holds multiple filter bags Jacketed Housing Used where temperature control is needed (e.g., viscous liquids) High Pressure Housing For systems up to 1020 bar pressure Top Entry vs Side Entry Top entry provides better sealing, side entry is more economical Typical Specifications Parameter Range Flow rate 1 m/hr to 1000+ m/hr Pressure rating Up to 10 bar (standard), 1620 bar (high pressure) Material SS304, SS316, MS with coating Micron rating 1, 5, 10, 25, 50, 100, 200 m Size standards Size 1 (7"x16"), Size 2 (7"x32"), others customizable Industries & Applications RO pre-filtration Paints and coatings Pharmaceuticals Food & beverage Petrochemicals Edible oil, milk, syrup, etc.
