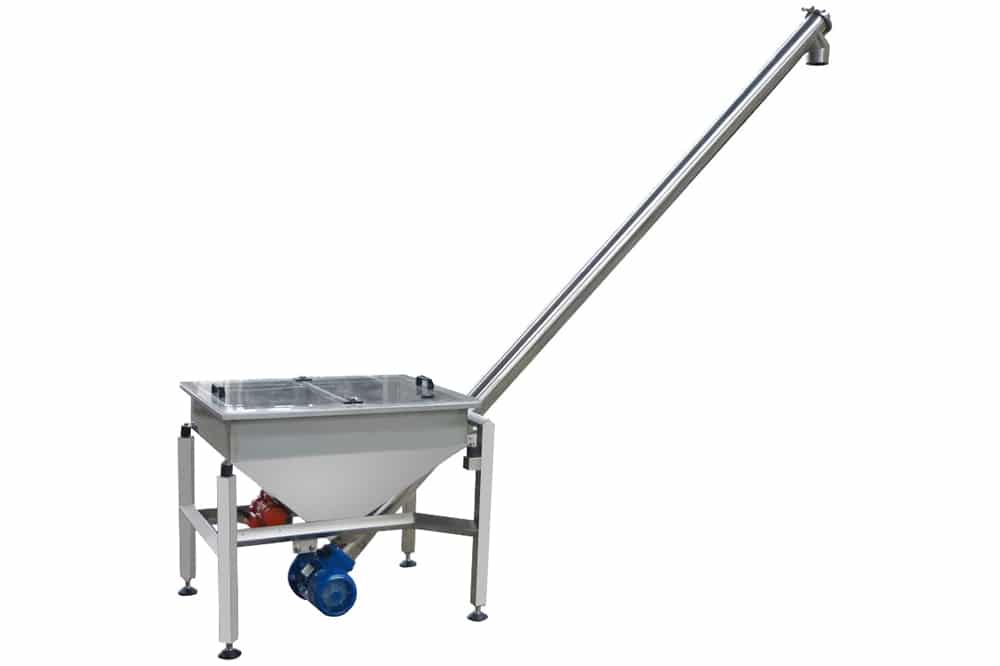

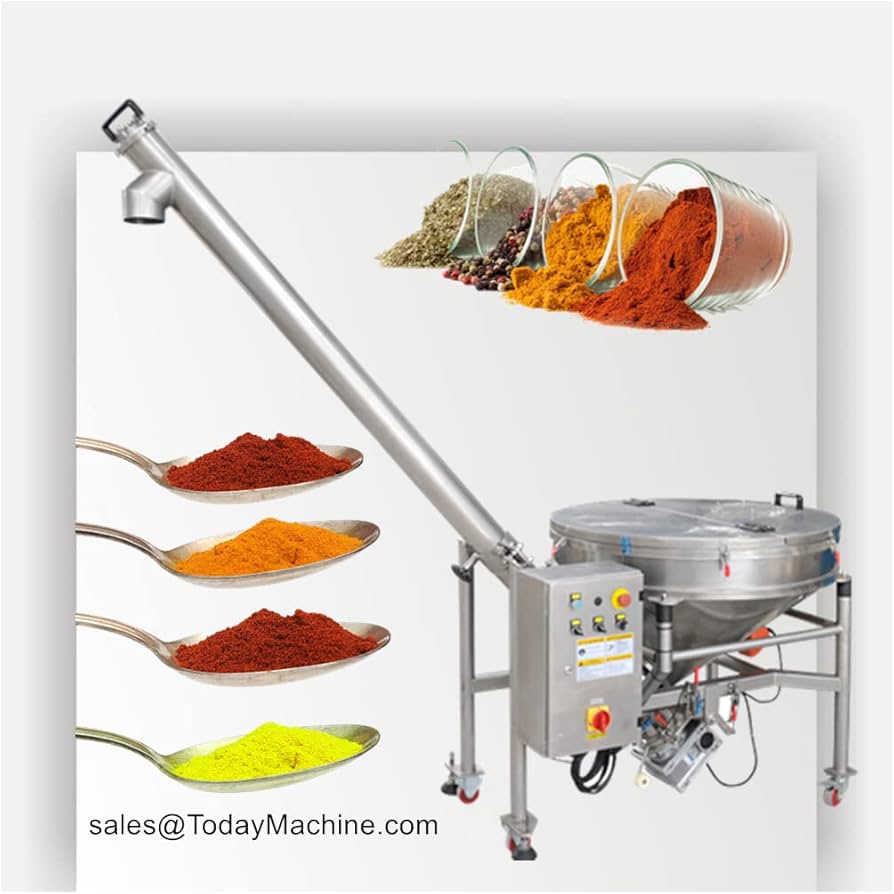

Stainless Steel Inclined Screw Conveyor

Stainless Steel Inclined Screw Conveyor Specification

Features
Easy to clean, Low maintenance, High strength, Customizable angle

Thickness
3 mm (customizable)

Surface Finish
Polished / Mirror Finish

Power Source
Electric

Material
Stainless Steel (SS304/SS316)

Type
Inclined Screw Conveyor

Structure
Tubular with Screw Blade

Vertical Conveyor
No (Inclined design)

Pneumatic Conveyor
No

Resistant Feature
Corrosion & Rust Resistant

Load Capacity
Up to 200 kg/hr (customizable)

Voltage
220415 V, 50/60 Hz

Power
1.5 kW

Speed
Variable, up to 60 RPM

Usage & Applications
Powder, Granules, and Bulk Material Handling in Food, Pharma, Chemical & Grain industries

Conveyor Length
3 meters (customizable)

Inclination Angle
Up to 60 degrees (as per requirement)

Noise Level
Below 65 dB

Mounting
Floor/Stand Mounted

Screw Diameter
100 mm (customizable)

Cleaning Access
Detachable covers for maintenance

Drive System
Helical Geared Motor (Flange Mounted)

Discharge Height
1.5 meters (customizable)

Output
Continuous & uniform material flow

Safety
Overload & emergency stop provisions

Hopper Capacity
40 liters (custom design available)

Stainless Steel Inclined Screw Conveyor Trade Information

Minimum Order Quantity
1 Unit

Sample Available
No

About Stainless Steel Inclined Screw Conveyor

Stainless Steel Inclined Screw Conveyor

Dia 6 inch x 10 geet long

Inside screw flights 3 mm thick

Flanges: 8 mm thick

Shaft dia: 30/35 mm

Hopper 600x600 mm

With 2 HP gear motor
Stand 40x40 mm box pipe

Use in all types of powder and granules

Versatile Material Handling Solution

Designed for industries requiring hygienic, robust, and reliable material transfer, this inclined screw conveyor efficiently moves powders, granules, and other bulk products. Its customizability in length, angle, and capacity allows adaptation to various plant configurations, ensuring reliable and uniform output for processes involving food, pharmaceuticals, chemicals, or grains.

Engineered for Cleanliness and Safety

Equipped with polished stainless steel surfaces, detachable covers, and emergency stop features, this conveyor prioritizes sanitary conditions and operator safety. Its corrosion and rust resistance, combined with overload protection and quiet operation, make it suitable for demanding manufacturing environments.

FAQ's of Stainless Steel Inclined Screw Conveyor:

Q: How is the inclined screw conveyor customized to fit specific industry needs?

A: The conveyor's screw diameter, total length, inclination angle, discharge height, hopper capacity, load rate, surface finish, and structure thickness can all be tailored to the requirements of your application, ensuring optimal performance across food, pharma, chemical, and grain industries.

Q: What materials and products can the conveyor efficiently transport?

A: This screw conveyor is suitable for powdered, granulated, and bulk materials. It is widely used in transferring products such as flour, spices, chemicals, grains, and pharmaceutical ingredients due to its uniform output and easy cleaning design.

Q: When is maintenance typically required, and how is it performed?

A: Routine maintenance is straightforward thanks to detachable covers that grant access to internal components. Cleaning and inspection should be carried out periodically or as needed, depending on the type of material being conveyed and usage frequency.

Q: Where should the conveyor be installed for best operation?

A: It is designed for floor or stand mounting, suitable for integration alongside equipment like mixers, hoppers, or packaging lines in production facilities. Custom discharge heights and configurations support flexible installation in both new and existing layouts.

Q: What is the process for adjusting conveyance speed or output?

A: The conveyor's helical geared motor is equipped with variable speed control, allowing operators to set the RPM as required. This regulates the flow rate, making it possible to achieve continuous, uniform output up to 200 kg/hr as per process needs.

Q: How does the inclined design benefit production lines?

A: The inclined format-adjustable up to 60-lets you move materials to elevated discharge points without the complexity of vertical conveyors. This improves plant ergonomics and facilitates seamless material transfer between multiple stages of processing or packaging.

Q: What safety provisions are provided with this conveyor?

A: Overload and emergency stop mechanisms are integrated to ensure safe operation. These features help protect both workers and machinery during unforeseen events or abnormal load conditions.
